Hayssen X850 Flow Wrapper

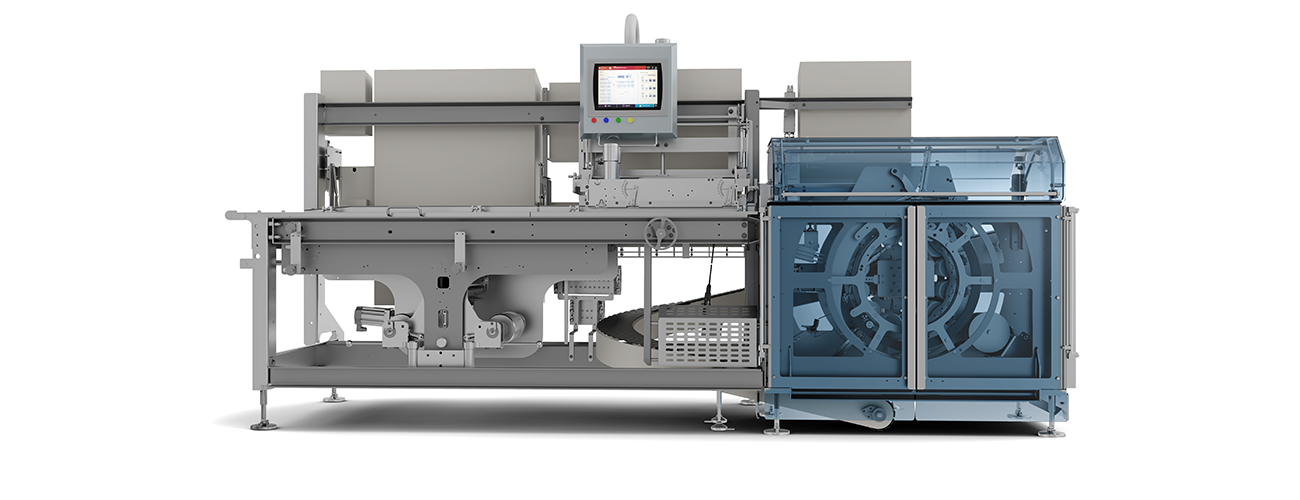

.png?sfvrsn=ebb525f_4 "Hayssen X850 front view with shadow")

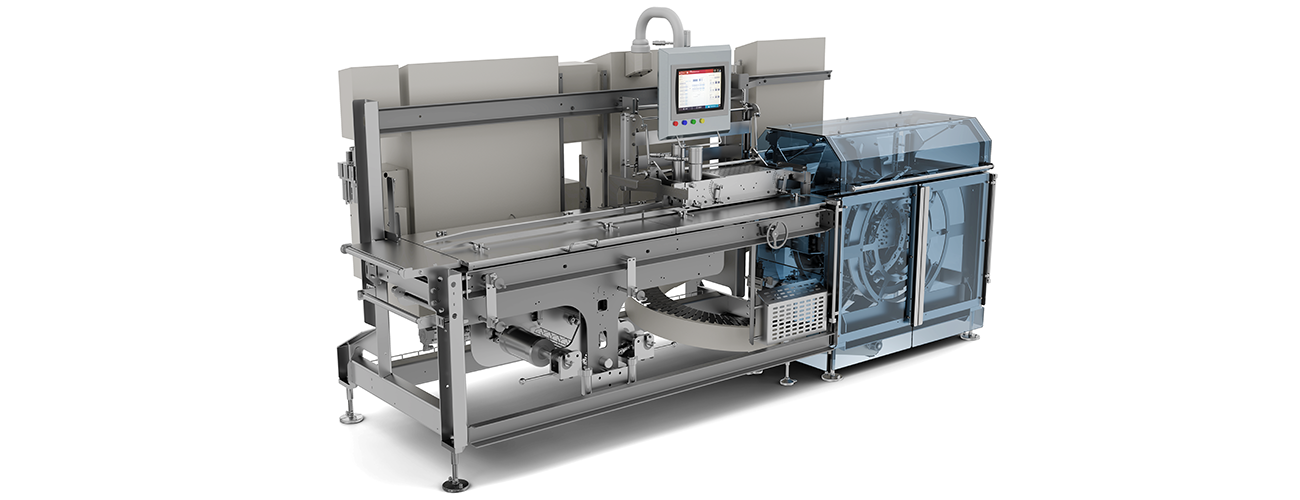

.png?sfvrsn=4bb525f_4 "Hayssen X850 side view with shadow")

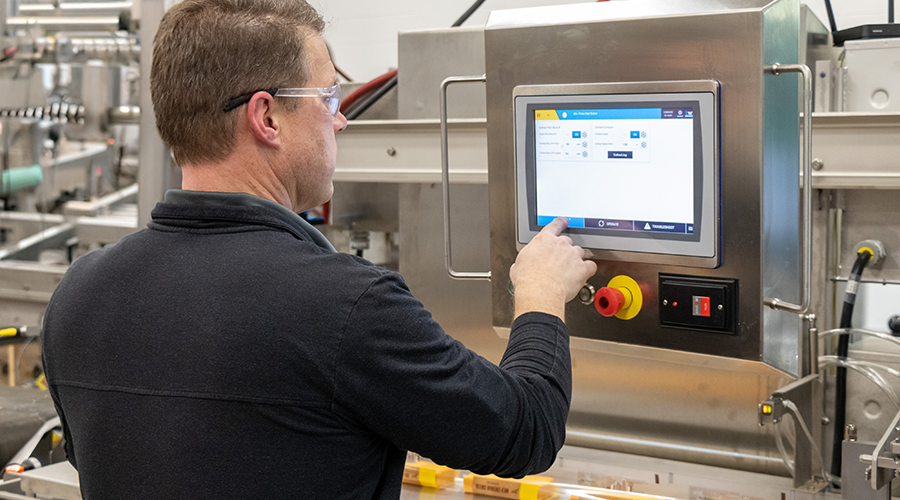

.png?sfvrsn=cbb525f_3 "X850 Flow Wrapper with OpView HMI")
About this machine
The Hayssen X850 flow wrapper is a multi-jaw flow wrapper specially designed to address the packaging requirements of products that require high seal integrity at high speeds, such as cheese. Featuring patented individual ring technology and quick-release jaw design, the Hayssen X850 flow wrapper machine is unlike anything else on the market today.
The Hayssen X850 meets the requirements of today’s manufacturer through its stainless steel frame for IP66 wash down, hygienic sloped surfaces and independent temperature control that will run various types of zippers and films, including recyclable materials.
With high throughput, the Hayssen X850 cycles up to 300 packs-per-minute (PPM) with over 1 second of dwell time and detects and clears product jams without stopping. Its film unwind system allows operators to easily fine-tune film tracking, enabling easy film loading and reducing downtime, while the servo jaw control minimizes wear and maintenance.
The Hayssen X850 also offers several smart features, such as RFID login and advanced OpView™ HMI standard on every machine.
Product Details
High Throughput
- Detects and clears product jams without stopping
- Cycles up to 300ppm with over 1 second of dwell time
- Servo jaw control minimizes wear and maintenance
Simplified Operation
- Independent top and bottom jaw temperature control
- Servo film edge tracking for consistent long seal
- Auto splice on the fly with pivoting spindles

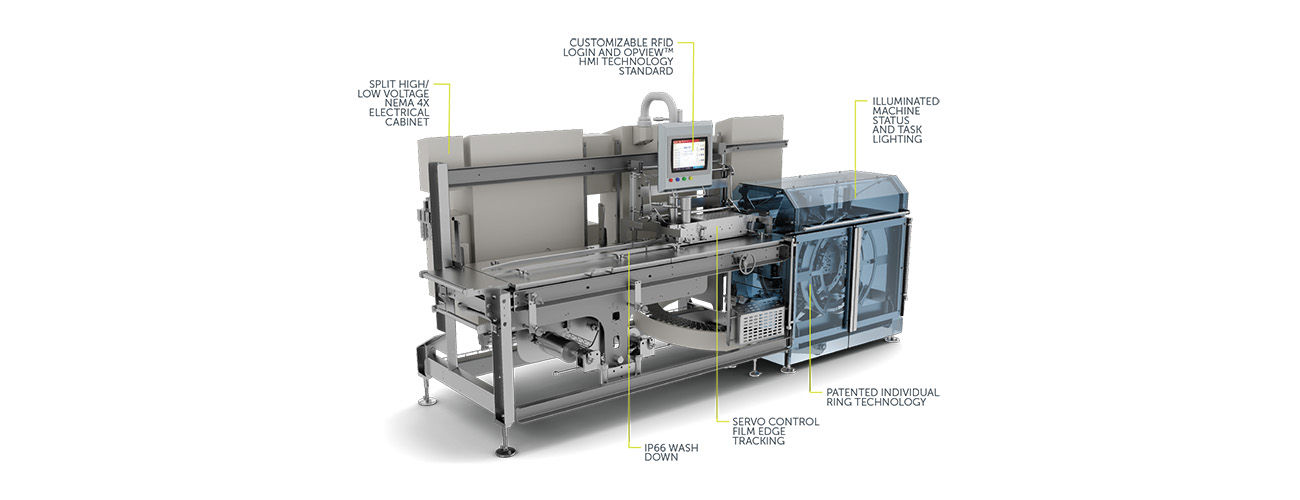

Innovative Design
- Patented individual ring technology with quick release jaw design
- Segmented and easily accessed single plane machined cams
- Engineered to seal various types of zippers and films including recyclable
Technical Data
Machine height: 85” (2159mm)
Machine length: 162” (4115mm)
Machine width: 55” (1397mm)
Max product height: 4” (102mm)
Max bag length: 14” (356mm)
Max flat bag width: 8” (203mm)
Max reel diameter: 18” (457mm)
Nominal bed height: 42” (1067mm)
Electrical: 480V 3ph – 60A
