Thiele Bag Sealers
About Thiele Bag Sealers
BW Packaging offers top-of-the-line Thiele solutions for securely filling and sealing bags. Our bag sealers are designed to fuse bag materials together with precision, ensuring a permanent and reliable seal. They are known for:
- Increased Productivity: Seal bags quickly and efficiently to boost your output.
- User-Friendly Operation: Simple controls make it easy to adjust settings on the fly.
- Versatile Use: Suitable for various bag sizes and production requirements.
- Dependable Performance: Trusted by thousands for its consistent and reliable sealing.
Product Details

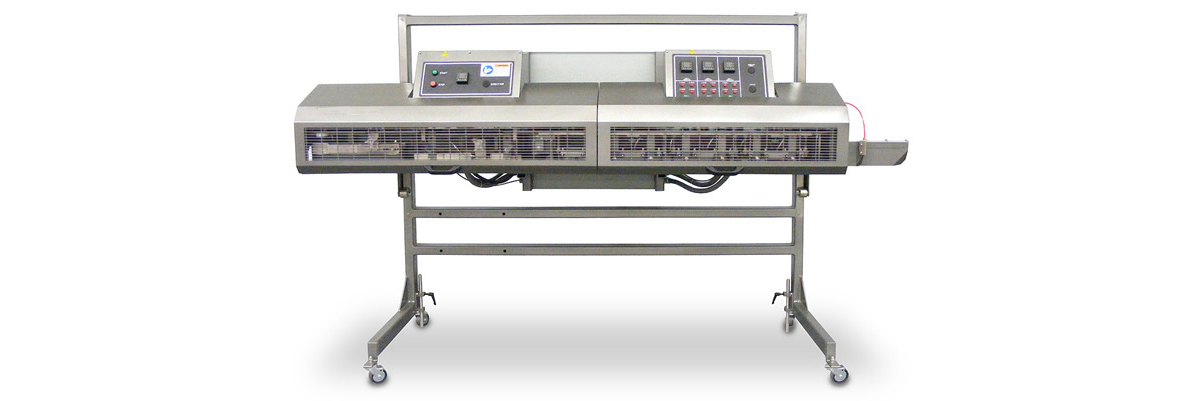

The Thiele Series 4601 AeroSeal Bag Closer is a dual bag closing system that quickly seals pre-glued, multi-wall paper bags.Thousands of these sealers have been sold and continue to provide consistent, reliable sealing with minimal downtime.
Features
- Electronic heater control — quick and easy temperature adjustment
- Instantaneous speed adjustment
- Fast bag size changeover
- Easy height adjustment while running
- Reliable, durable service with minimal downtime
- Optional quick bag release function
Technical Data
Production Rate
- 7.6 to 21.4m per minute (25' to 70') dependent on bag type and ambient conditions
Dimensions
- Length: Standard manual bag entry guide, 2857.5 mm (112.5")
- Optional 7130 auto infeed: 2949.6 mm (116.125")
- Optional 7115 auto infeed: 3086.1 mm (121.5")
Power Requirements
- Input Power: 240 volts, 3-phase, 60 hertz, 40 amps max.
- Control Circuit: 24 VDC, 7.2 amps output generated from a 24 VDC power supply from a 240 VAC input
- Current Draw: 240 volts, 40 amps, 480 volts, 20 amps (15 KVA transformer required)
Air Requirements
- Operating Pressure: 5 - 8 psig (34 to 55 kPa)
- Line Pressure: 80 psi (551 kPa)
- Air Use per Cycle: 8 standard cubic ft. free air per cycle (225 liters) at 5 to 8 psig (34 - 55 kPa) operating pressure
- Pressure Switch Setting: 3 psig (34 kPa)
- Pressure Relief Valve: 14 psig (55 kPa)
Options
Packaging Styles
Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
