7115XC Open-Mouth Bagger
About 7115XC Open-Mouth Bagger

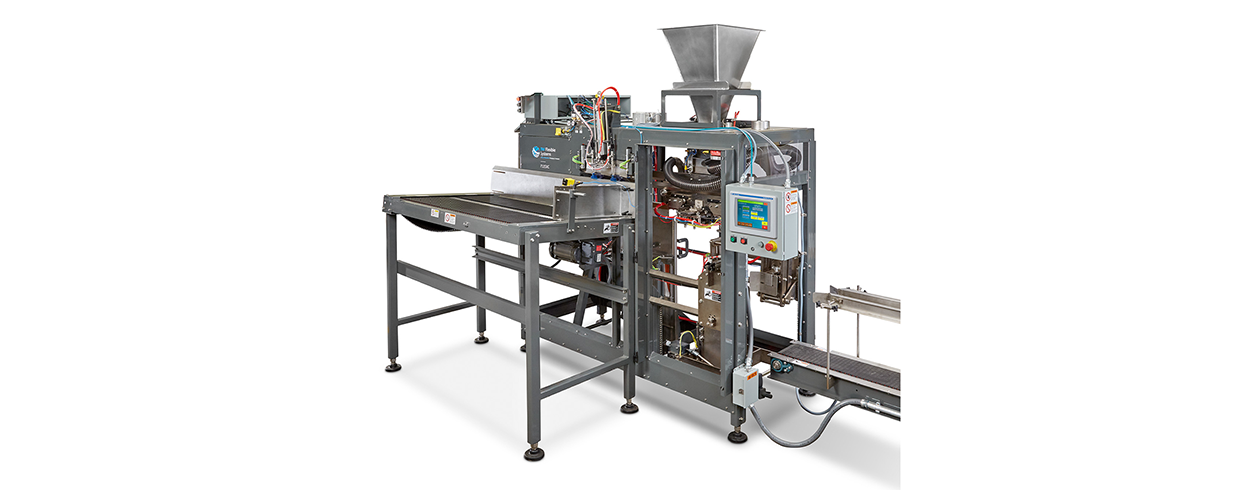

The Thiele Series 7115XC Automatic Bagger is a simple, reliable, highly accurate system for bagging free-flowing products. The system's specialized "duck bill" filling spout moves into the bag before filling to reduce dusting. The 7115XC handles up to 20 bags per minute.
Key Benefits
- Increased accuracy
- Spillage reduced
- Simple maintenance
- Tool-free changeovers for decreased downtime
- Reduced dusting
Product Details
Features
- Operator-friendly interface simplifies fine-tuning.
- Simple inline design delivers total bag control for faster filling and better seals.
- Single adjustable carriage handles paper or poly bags in widths from 11" to 20".
- Filling spot moves into the bag for minimal dust.
- The bag infeed system delivers accurate placement even if bags are wrinkled or stacked inconsistently.
- Shaker/saddle design cuts adjustment time and improves product settling.
- Fast and easy tool-free changeover.
- Positive auger control handles a variety of products while minimizing dust.
- Computer control allows automatic fill-time adjustments while making a variety of data available.
- Tube-in-bag filling provides better product and dust control.
Additional Features
- 304 stainless steel product contact surfaces
- PLC scale control
- Downstream conveyor
- Exit belt assembly
- Gravity scales
Technical Data
Production
- Up to 20 bags per minute
Bag Sizes
- Face Width: 11 in. - 20 in. (279.4 mm - 508 mm)
- Length:
- SOM: 20 in. - 3 ft. 4 in. (508 mm - 1016 mm)
- PBOM: 21 in. - 3 ft. 6 in. (533.4 mm - 1066.8 mm)
- Max. Gusset: 5 in. (137 mm)
Electrical Requirements
- Input Power: 230/460 V, 3-phase, 60 Hz
- Control Circuit: 115 V via control power transformer
- Current Draw: 230 V (10 A) / 460 V (5 A)
Options
A few of the available options include:
- External sealers available
- EWON available
Packaging Styles
