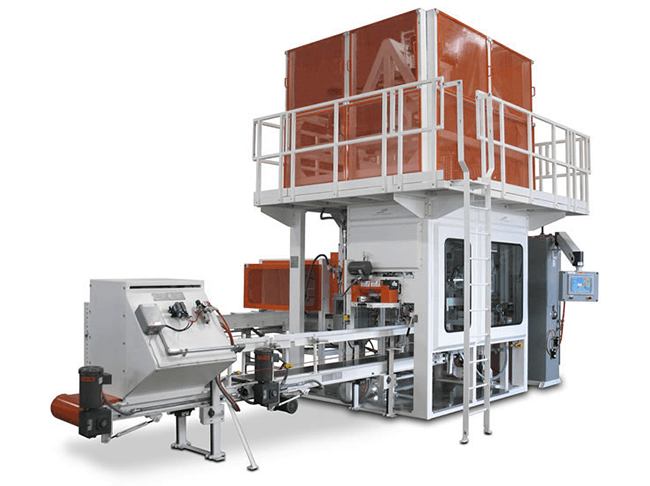

3110 Bag Filling System
About 3110 Bag Filling System
Thiele's improved 3110 Bag Filling System, formerly Slidell's PowderPacker Pro Vertical Auger Bagging System, is a proven, fully automated packaging system that offers virtually dust-free bagging for the most difficult-to-handle powders, especially titanium dioxide, resins, and pigments.
This is the ultimate bagging system for:
- Fine, fluffy powders
- Titanium dioxide
- Powdered chemicals
- Talc
- Pigments
Product Details
- Totally automatic — bag placing, feeding, bag top registration, bag opening, weighing, and bag closing, from start to finish, is as easy as pressing a button.
- Complete bag top control offers consistency yet flexibility to run variable length bags.
- The two-stage, variable-speed, vertical auger feed system virtually eliminates dust for a clean environment.
- Bottom-up auger filling eliminates bag deflation, flattening, and dust.
- Innovative augers and agitators offer better compression — saves you money by using smaller bags that handle better during palletizing.
- New, innovative gross weigh scale design delivers accuracy while reducing wear and maintenance.
- Updated user-friendly touchscreen and Allen-Bradley controls make operation easy and minimize learning time and operator error.
Technical Data
Production Speed
- 4-6 bags per minute
Bag Sizes
- Length: 3835.4 mm (151")
- Width: 4687.9 mm (184 9/16")
- Height: 4860.1 mm (191 11/32")
Electrical Requirements
- Input Power: 460 volts, 3-phase, 60 hertz | 120 volts, 1-phase, 60 hertz
- Control Circuit: 24 VDC from internal power supply
- Current Draw: 230/460 Volts (20/10 amps)
Air Requirements
- Operating Pressure: 80 psi (5.4 atm)
- Line Pressure: 90 psi (6.1 atm)
- Air Use Per Cycle: 1.6 scf (45 liters), free air per cycle
Options
Packaging Styles
Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
-
